MESH MADE IN ORANGE NSW

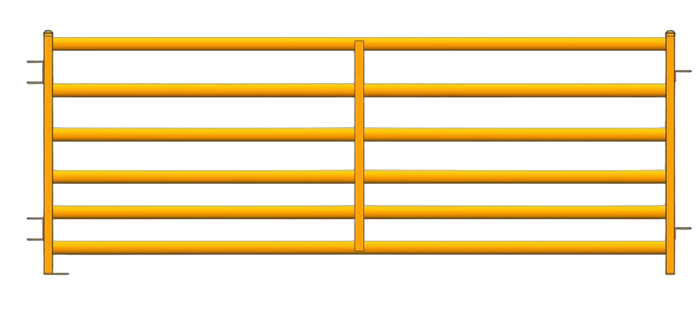

39 INCLUDED

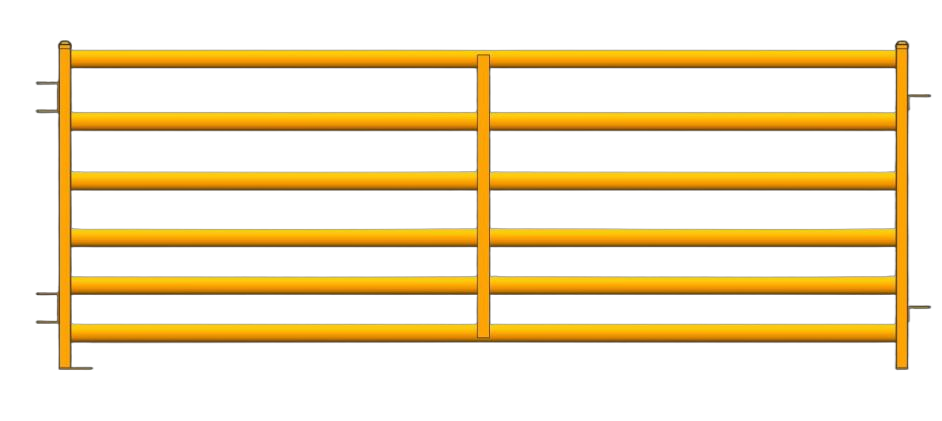

3 m sheep panels
The longer panel sections used throughout the layout.
Sheep handling · Outback Fencing · Orange NSW

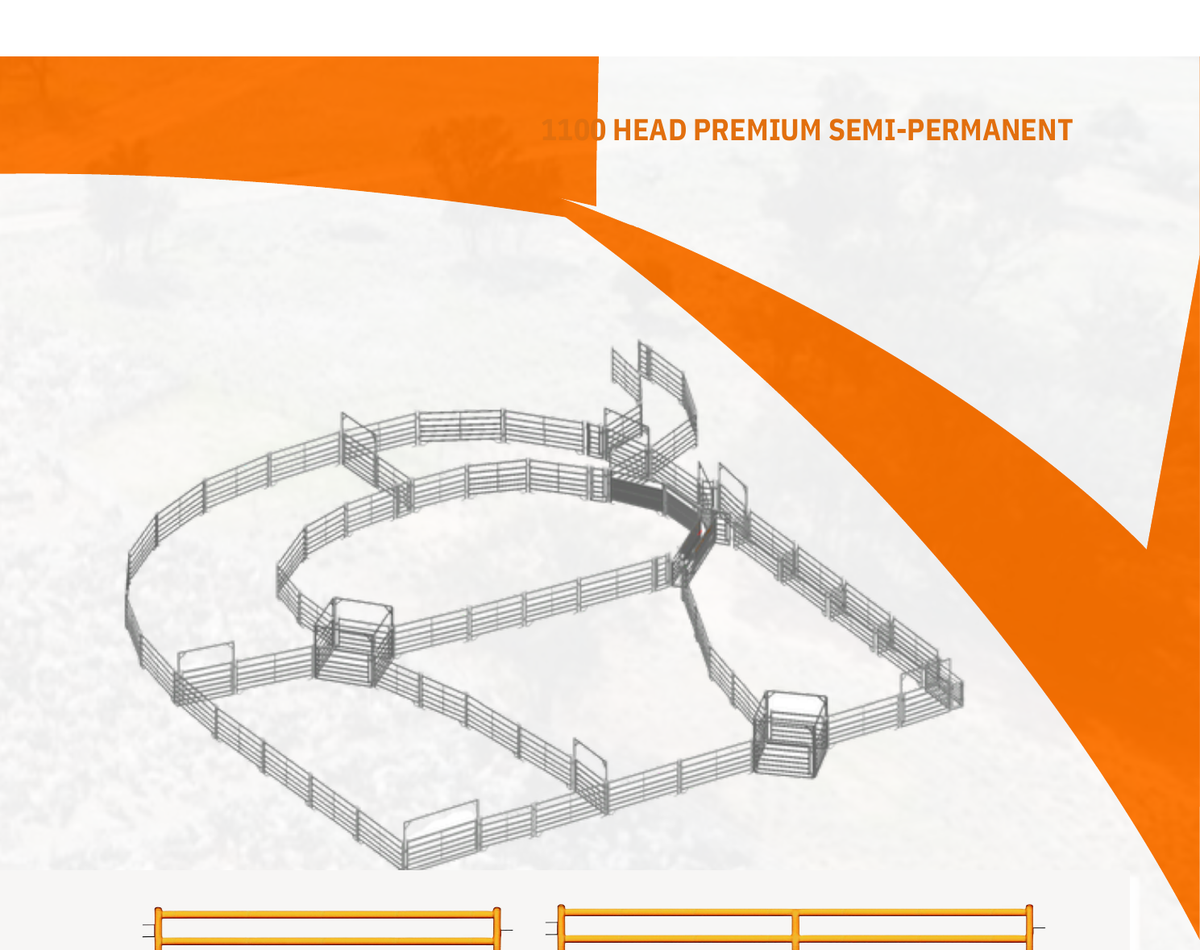

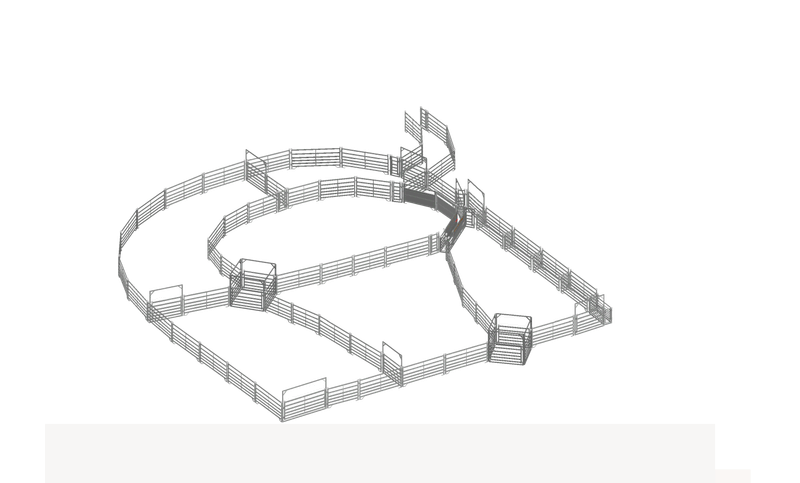

1,100-head sheep yard.
1,100-head semi-permanent sheep yard
Holding pens, access gates and three-way drafting equipment in one semi-permanent package.
$14,990 AUD incl. GST
Supply only. Freight and installation are extra.
Ask us to confirm availability and lead time with your quote.
1,100head · supplier-rated, approximate
577 m²approximate layout area
1.1 mpanel height
3-wayV draft + separate draft box
Capacity is a supplier estimate, not a guaranteed working capacity. Sheep size, working space and your final layout affect how many animals the yard can hold.
Know what you are buying
Not just a layout. The parts that make it work.

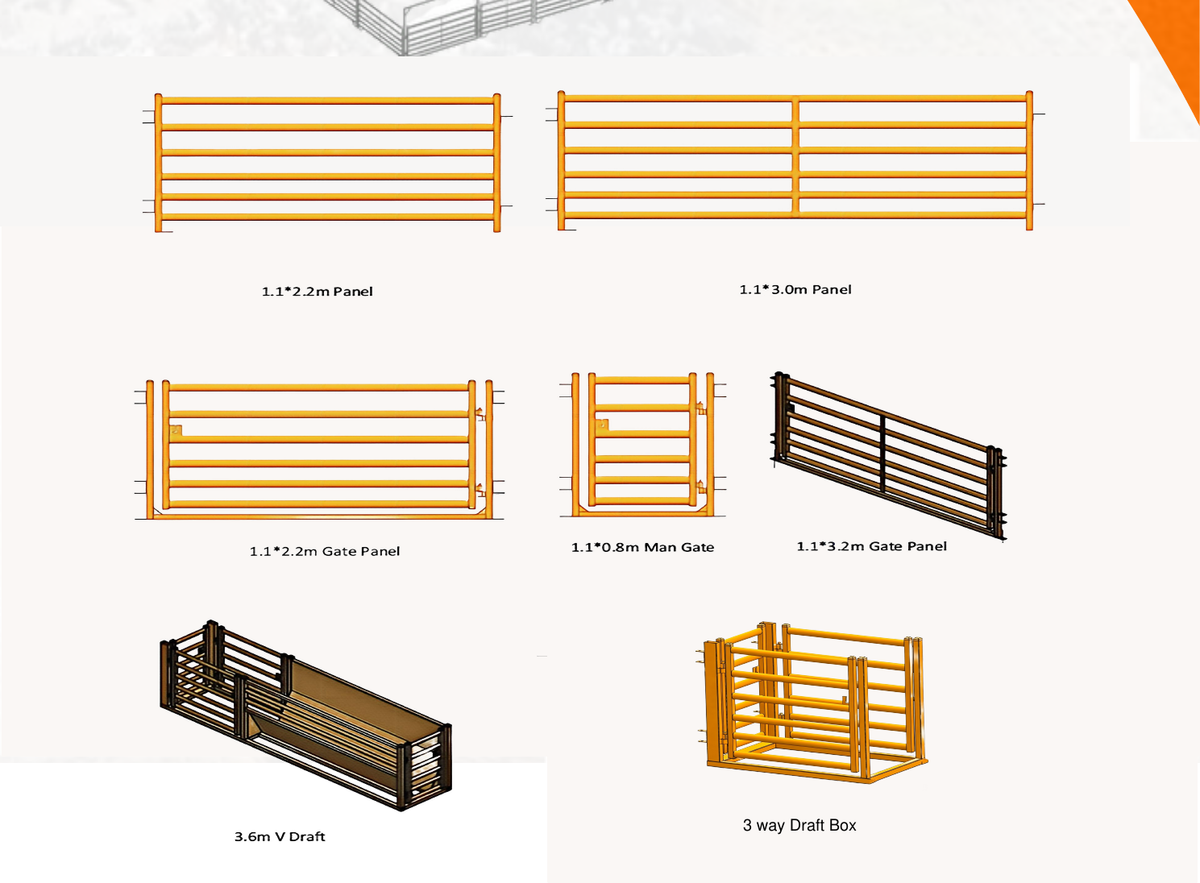

See the panels, gates and drafting equipment individually. The complete quantities are listed below.

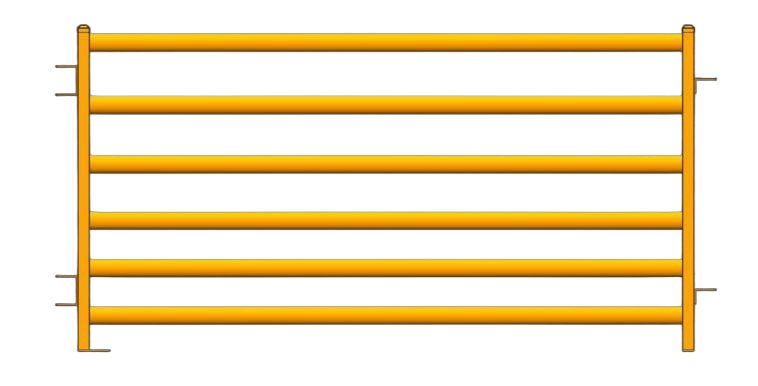

18 INCLUDED

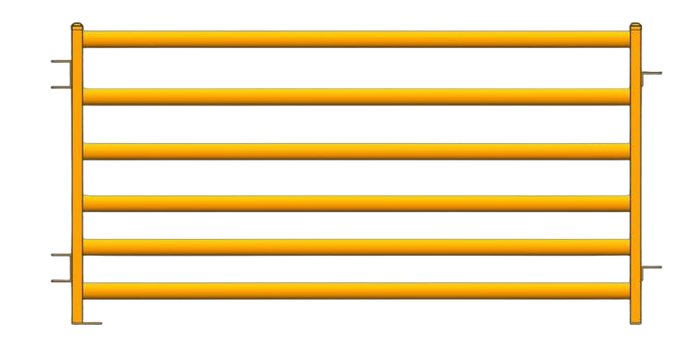

2.2 m sheep panels
Shorter panel sections for the layout’s smaller spans and working areas.
13 INCLUDED

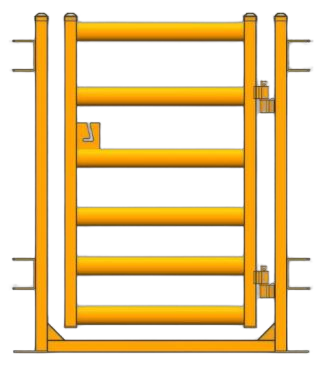

Man gates
Separate access points for moving between pens on foot. Opening dimensions confirmed in your quote.

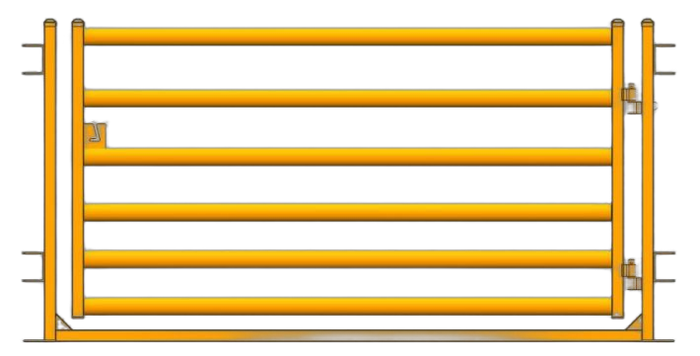

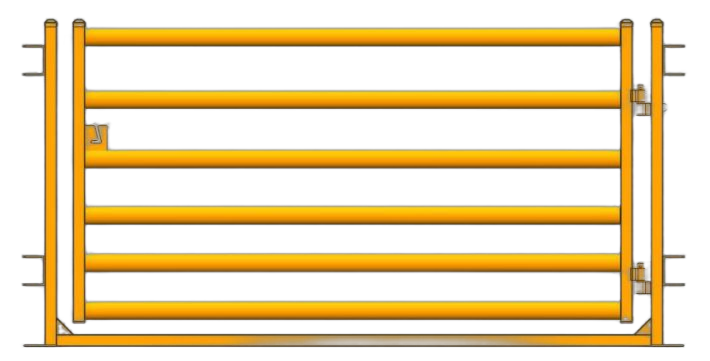

16 × 2.2 M + 1 × 3.2 M
Gate panels
Gated openings between areas. The illustration shows the 2.2 m gate panel.
1 INCLUDED

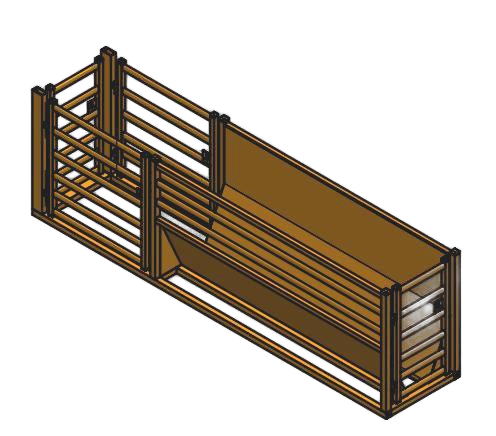

3.6 m three-way V draft
The V drafting unit shown in the supplier layout.
1 INCLUDED

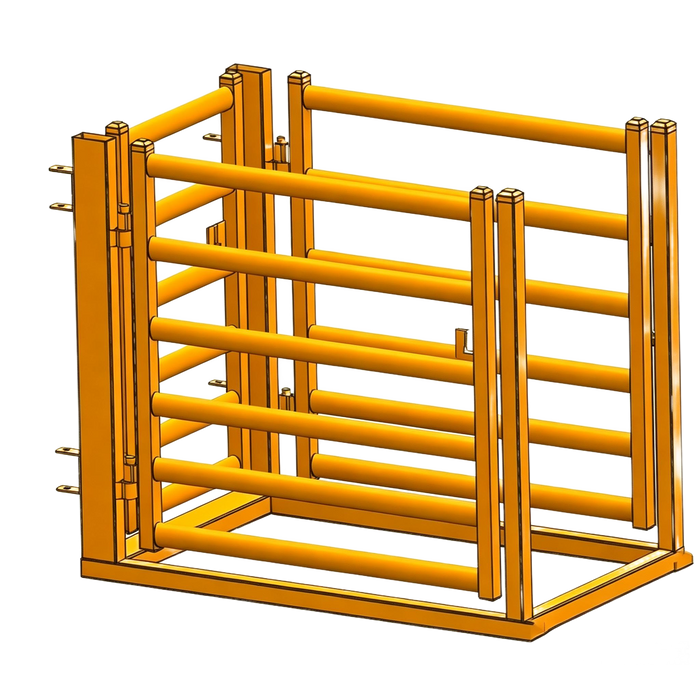

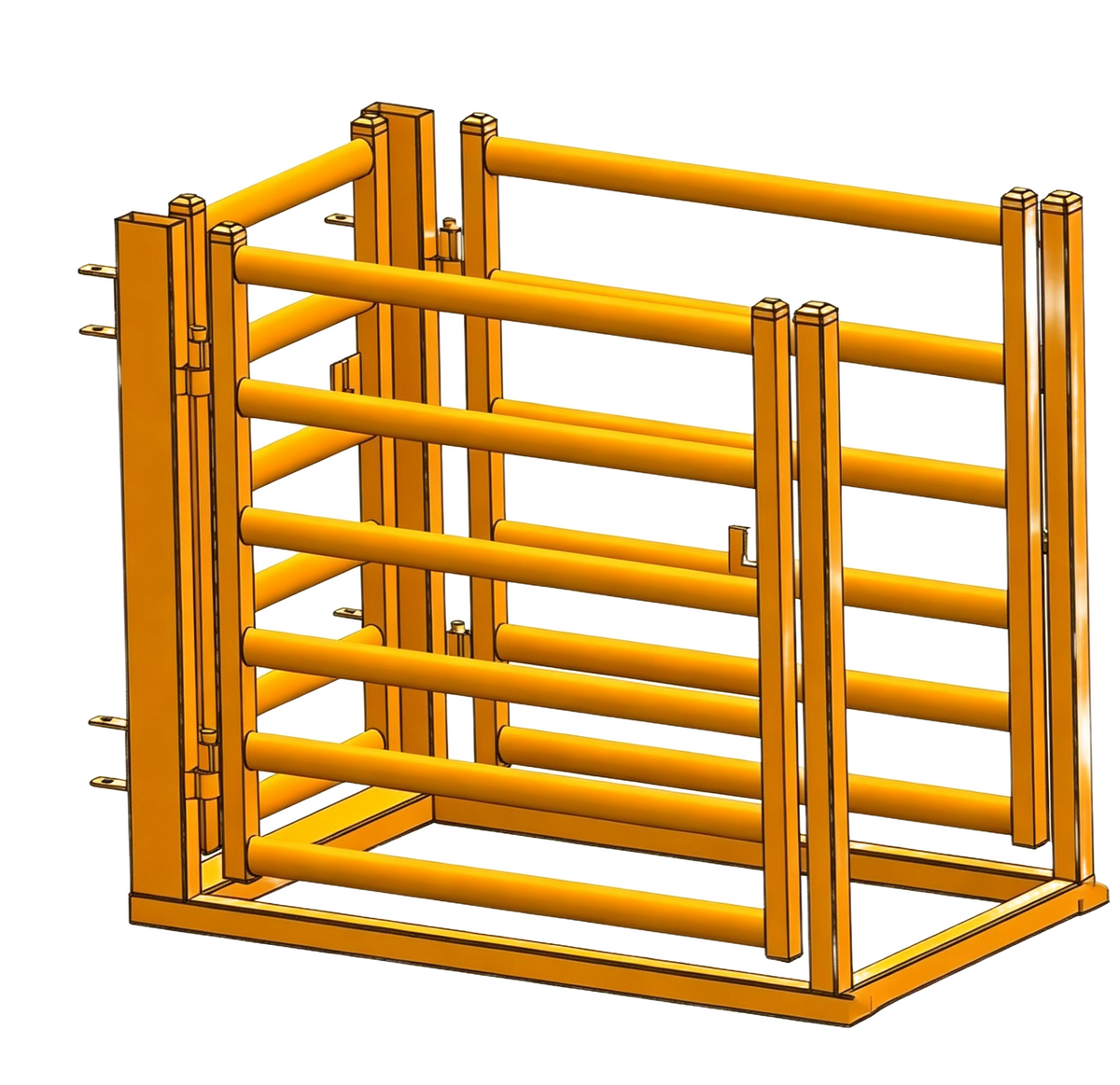

1.25 m three-way draft box
A separate drafting box supplied in addition to the V draft.
Supplier illustrations shown in neutral tones for clarity. These are not product photographs or colour/finish samples. Open an image to see the original.
Construction, not just claims
Quality you can put a measure on.
The panel steel and coating specifications tell you more than a sales label. Here is what the supplier actually specifies.
Panel uprights
40 × 40 × 1.8 mm
Square-section S350GD steel uprights with a specified 1.8 mm wall. The supplier specifies a zinc–aluminium–magnesium coating, designated ZMA275 (275 g/m²).
S350GD · ZMA275Panel rails
30 × 60 × 1.6 mm
Flat-oval S350GD steel rails with a specified 1.6 mm wall. The supplier specifies a zinc coating designated Z200 (200 g/m²).
S350GD · Z200Why the coating matters
Corrosion protection
The metallic coating protects the underlying steel from corrosion. The upright and rail coatings differ: this is not a claim that every component has the same finish. Exposure, damage and maintenance still affect service life.
Source: Helms sheep-yard kit specification, 17 August 2026. These specifications apply to the listed panel uprights and rails, not automatically to all gates or drafting equipment. Coating mass is not a lifespan guarantee.
One package, item by item
Exactly what is included.
Use this list to compare like for like. A low headline price means little without the panels, gates and drafting equipment behind it.
$14,990 AUD incl. GST
Supply only. Freight and installation are extra.
Get my delivered quote| Component | Qty |
|---|---|
| 3.0 m sheep panels · 1.1 m high | 39 |
| 2.2 m sheep panels · 1.1 m high | 18 |
| 3.0 m blind panels · 1.1 m high | 2 |
| Man gates | 13 |
| 2.2 m gate panels | 16 |
| 3.2 m gate panel | 1 |
| 3.6 m three-way V draft | 1 |
| 1.25 m three-way draft box | 1 |
Per-set quantities from the supplier quotation dated 11 September 2026. Sheep lifter, loading ramp, scales and electronic weighing equipment are not listed in this package. Final dimensions and inclusions are confirmed in your written quote.
Before you commit
Get the right yard, not just a price.
Tell us about your property
Share your postcode, flock size and how you intend to use the yard. Let us know if it is a new setup or an extension.
Check fit and delivery
Work through the layout, access, availability and freight with our Orange team before committing.
Review your written quote
Confirm the components, final dimensions, delivery arrangements and full price before you place an order.
Questions worth asking before you buy.
Will this comfortably hold 1,100 sheep?
The supplier rates the layout for approximately 1,100 head. That is not a promise of working capacity for every flock. Tell us the size and type of sheep and the work you want to do so we can discuss holding space, pen use and layout.
Does the advertised price include delivery and installation?
No. The advertised price includes GST and is supply only. Freight and installation are extra. Give us your postcode and access details so the delivered price and any installation arrangements can be confirmed in writing.
Is it in stock, and when could I get it?
Ask our team to confirm current availability and lead time for this specific yard. We do not apply the picket or mesh lead times to sheep yards.
Is the entire yard coated the same way?
No single coating specification is being claimed for the whole yard. The supplier specifies ZMA275 on the listed panel uprights and Z200 on their oval rails. Ask for confirmation of the finish on individual gates and drafting equipment before ordering.
Can I change the layout or add equipment?
Tell us what you need to change. We can work through a different configuration or an extension with you; any changes, additional equipment and pricing need to be confirmed in your quote.
Are these photographs of the finished yard?
No. These are supplier layout and component illustrations. They show the proposed equipment and arrangement, not a photographed installation or a finish sample. Ask our team about current product photographs before purchase.
Let’s work through your yard
What would it cost to get this to your property?
Start with your postcode and a few details. We will use them to prepare a quote and discuss whether this layout suits your job.
