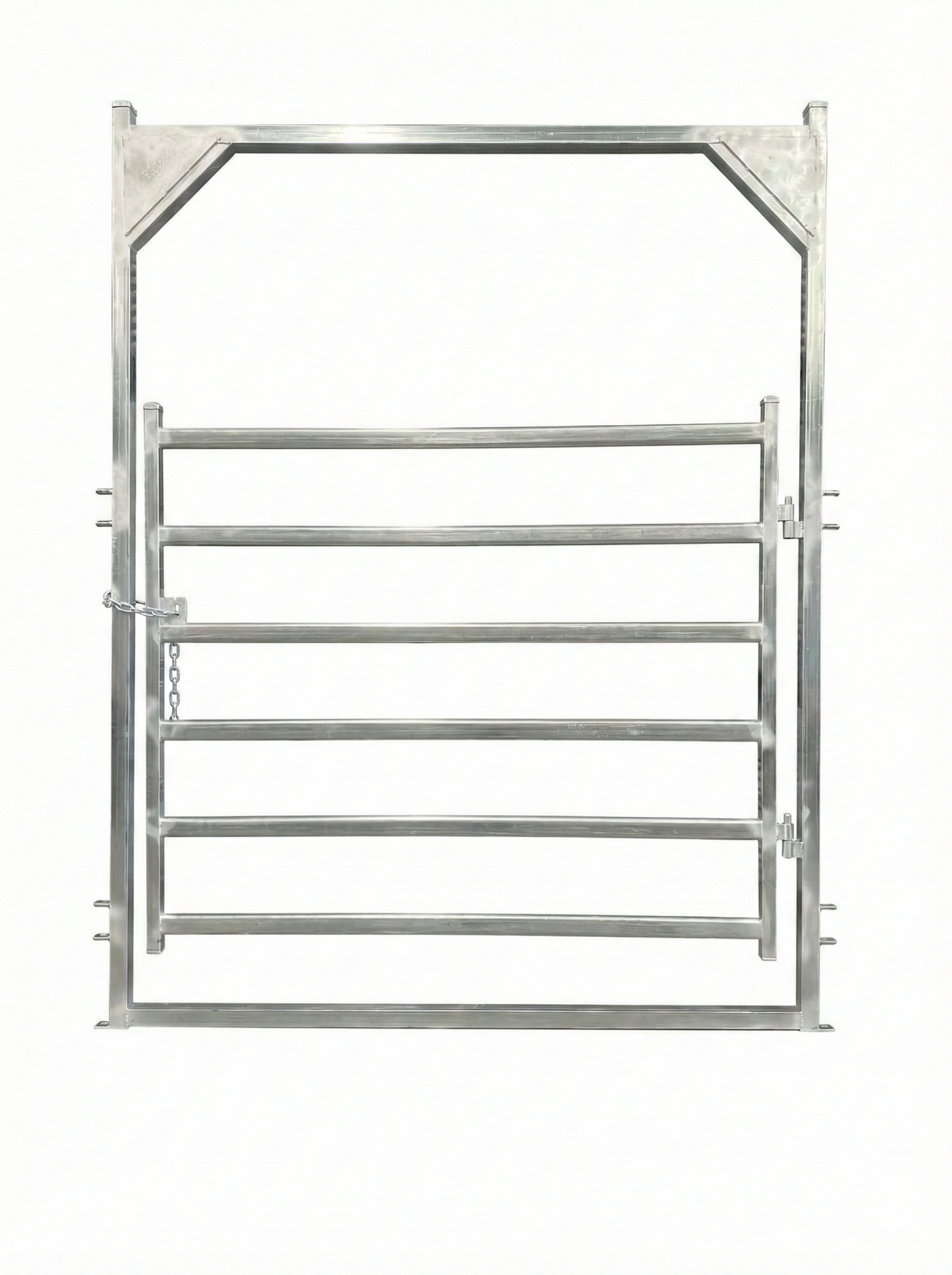

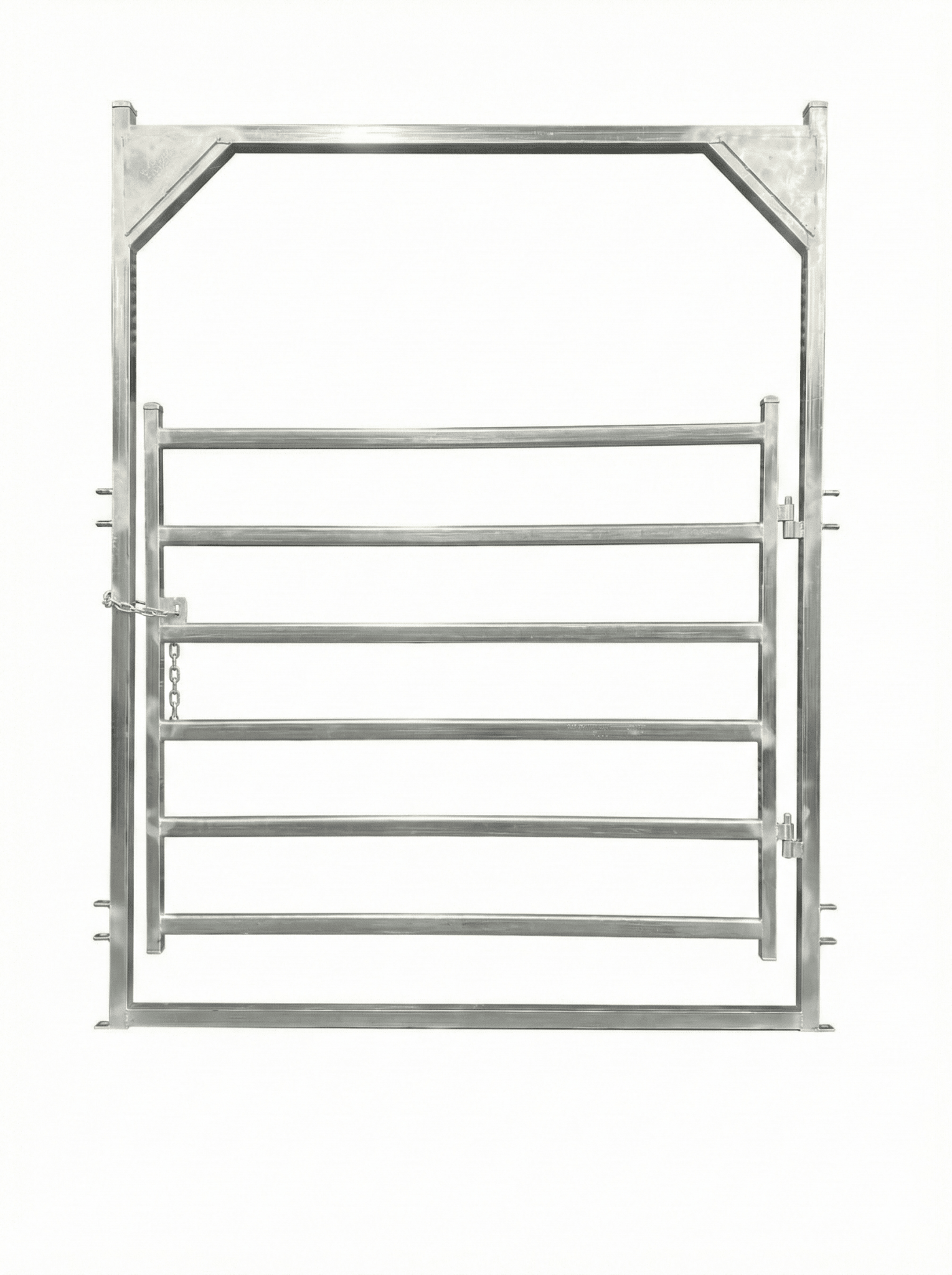

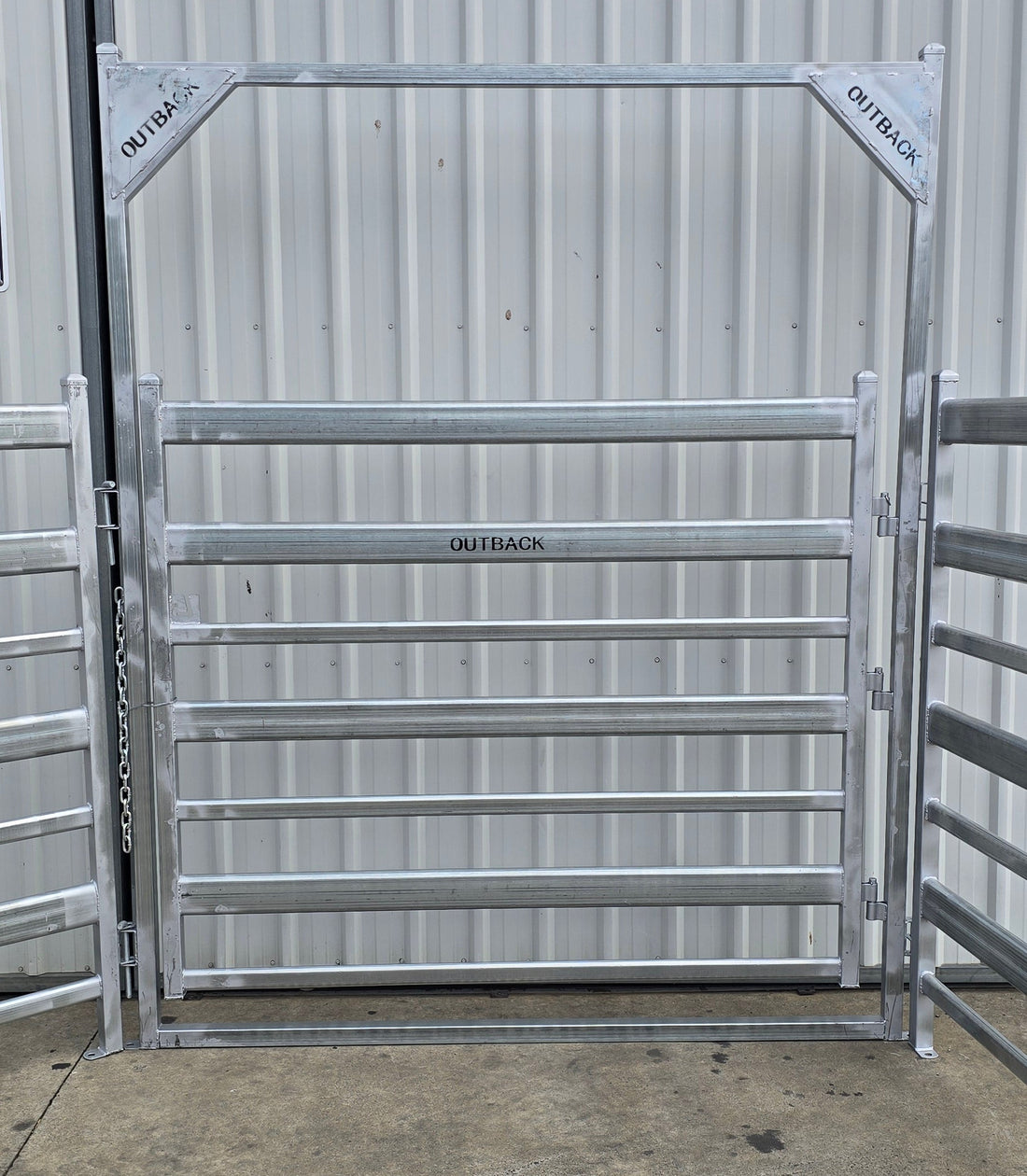

High Top Ride Through Gate

High Top Ride Through Gate — Stay in the Saddle

The Outback High Top Ride Through Gate is purpose-built for horse and cattle work where you need to open, pass through, and close the gate without dismounting. Designed with a generous 2.7-metre high-top arch frame, this gate gives you full clearance for horse and rider — no ducking, no awkward dismounts, no wasted time.

Built from heavy-duty galvanised steel and engineered to integrate seamlessly with standard cattle and horse panels, this gate is ideal for round yards, day yards, arenas, holding pens, and cattle yard entries.

Gate Specifications

• Overall Height: 2,700 mm (2.7 m) — full ride-through clearance
• Gate Width: 2,100 mm (2.1 m)
• Gate Section Height: ~1,800 mm (matching standard panel height)
• Frame Posts: 50 × 50 mm SHS, 2.0 mm wall thickness
• Horizontal Rails: 6 × Oval Rail (30 × 60 mm), 1.6 mm wall thickness
• Finish: Hot-dip galvanised for long-term corrosion resistance

High-Top Arch Frame

The signature high-top arch extends well above the gate section, providing safe and comfortable clearance for a rider on horseback. The angled top frame is reinforced at both corners for structural rigidity and clean aesthetics. No sharp edges, no risk of catching gear or clothing.

Built for Horseback Operation

Every detail of this gate is designed so you never have to leave the saddle:

• Chain latch system — easy to operate with one hand from horseback
• Swing clearance — gate is designed to swing freely in both directions
• Smooth oval rails — anti-bruise design reduces risk of injury to horses and cattle
• Welded hinge pins — for fast assembly to any standard panel using drop pins

Heavy-Duty Construction

• 50 × 50 mm SHS frame posts with 2.0 mm wall thickness — the same heavy framework as our Premium Outback Panels
• 6 oval rails provide solid containment while maintaining good visibility for stock flow
• Full hot-dip galvanised finish for maximum weather and corrosion protection
• All welds ground smooth for a clean, professional finish and livestock safety

Easy Integration

Designed to work with standard 1.8m cattle and horse panels:

• 2 welded lugs per side for panel-to-panel pin connections
• 2 pre-drilled ground pin holes for secure anchoring
• Compatible with Outback Panels, round yard systems, and most standard panel brands

Ideal For

• Horse round yards and arenas
• Cattle yard entry and exit points
• Day yards and holding pens
• Any yard where riders need to pass through without dismounting
