MESH MADE IN ORANGE NSW

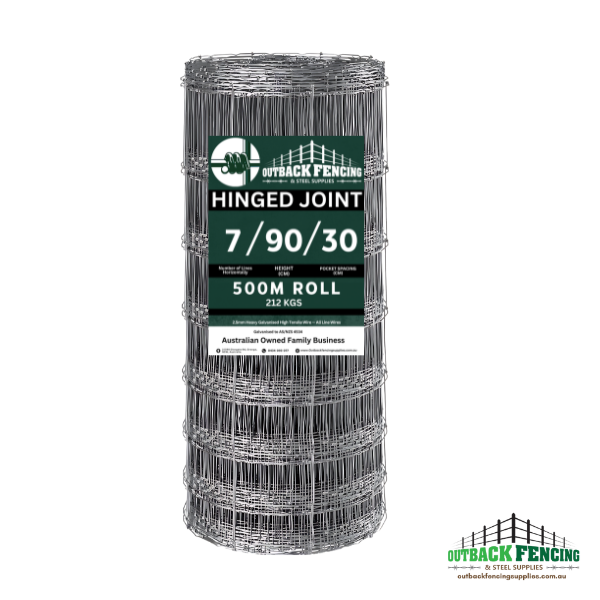

Hinged Joint 7/90/30 500m
Wet country or a long-life boundary? Hot-dip galvanised outlasts bitumen — only a couple of dollars more per picket.
Made in production runs, not warehoused. Current dispatch ~6 weeks — orders ship in the order they land, so locking yours in now holds your spot and your price.
- 2.50mm wire throughout — heavier than standard hardware mesh
- 260g/m² heavy galvanised coating
- Made on our machine in Orange, NSW
| Wire | 2.50mm throughout — horizontals HT, verticals MT |
| Coating | 260g/m² heavy galvanised |
| Manufacture | The Beast — Orange, NSW (Australian Made) |
Not sure how much you need? Run your fence through the calculator →

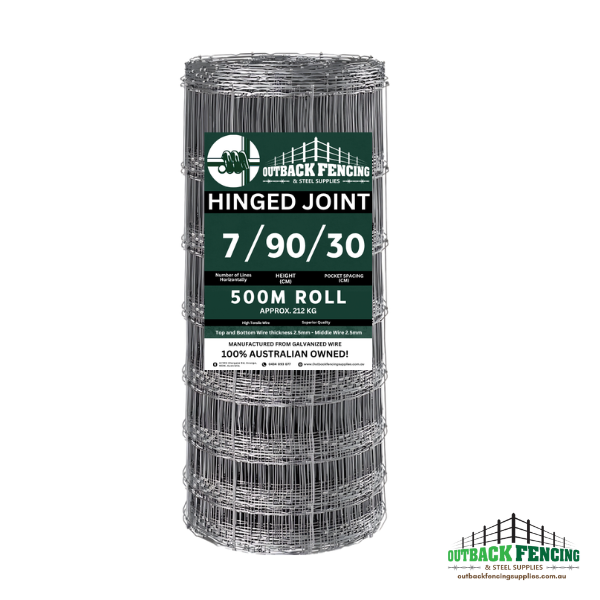

Hinged Joint 7/90/30
500m Roll
Maximum coverage, minimum joins. 500 metres of hot-dip galvanised hinged joint mesh — manufactured in-house for contractors and large-scale fencing runs.
The 7/90/30 Hinged Joint Fence in 500m rolls is built for contractors and landholders running serious kilometres. Same trusted 7-wire, 90cm-high, 30cm-spaced mesh — just 2.5 times the length of a standard roll. That means dramatically fewer joins across a run, less downtime rolling out new mesh, and a lower cost per metre on large jobs. Every roll is manufactured in-house at our Orange, NSW facility using 2.5mm hot-dip galvanised wire with our signature tightly wrapped hinge joint knot. If you're fencing boundary lines, subdividing large paddocks, or quoting big contract jobs — this is the roll that pays for itself in labour savings alone.
Built for big runs
Strength & Flexibility
Designed to withstand heavy livestock pressure without permanent deformation. The hinge joint flexes under impact and returns to shape.
500m — Fewer Joins
Cover half a kilometre per roll. Drastically reduces join points across a fence line — saving time, materials, and potential weak spots.
Hot-Dip Galvanised
Full hot-dip galvanised coating on all wires for maximum rust and corrosion resistance — built to last in harsh Australian conditions.
Understanding the wire configuration
The naming convention tells you everything about the mesh at a glance. Here's what each number in 7/90/30 represents:
Technical details
| Specification | Detail |
|---|---|
| Wire Configuration | 7/90/30 |
| Roll Height | 0.9m (90cm) |
| Roll Length | 500m |
| Horizontal Wires | 7 |
| Vertical Wire Spacing | 30cm |
| Wire Thickness (All Wires) | 2.5mm |
| Material | Hot-Dip Galvanised Steel |
| Knot Type | Tightly Wrapped Hinge Joint |
| Manufacturing | Made In-House — Orange, NSW |
Common applications
Orange, NSW
Galvanised
Throughout
Business
Need a bulk quote?
Running kilometres of fence? Call Jess on 0434 093 077 for volume pricing on pallet quantities.
🚚 Free delivery on orders over $10,000 within 500km of Orange NSW.
