Home / Hinged Joint 8/90/15 200m Roll

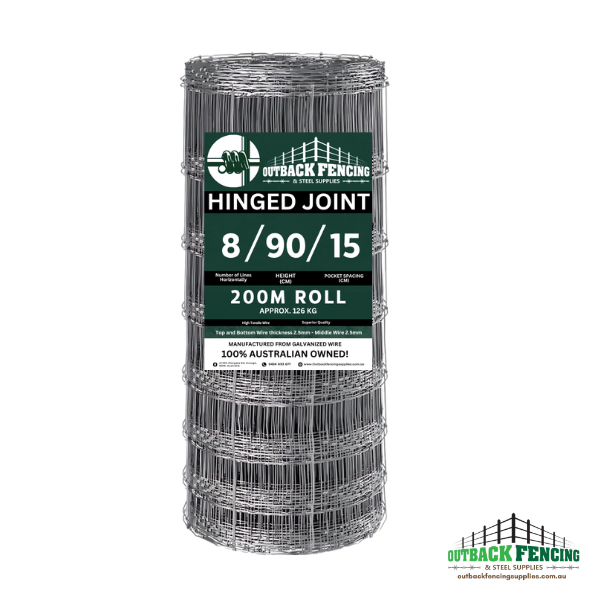

Hinged Joint 8/90/15 200m Roll

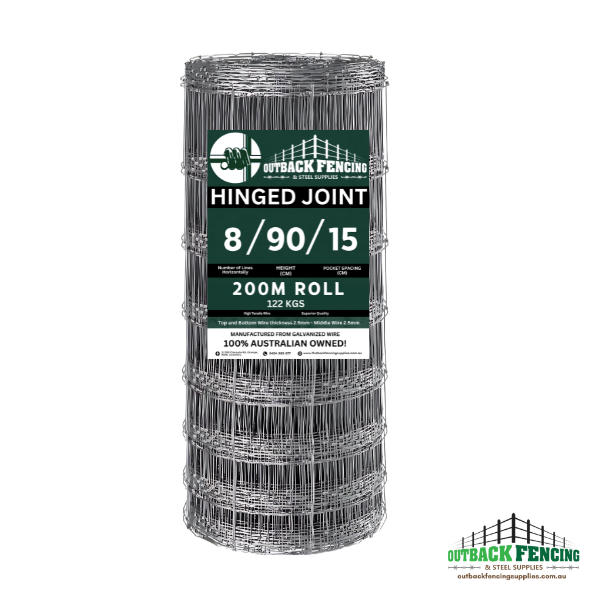

Outback Hinged Joint 8/90/15 200m roll with green label, approximately 126kg. Outback Hinged Joint 8/90/15 200m roll, sold as a nine-roll pallet Pallet of Hinged Joint 7/90/30 200m bulk agricultural fencing wire
★ Australian Made — manufactured in Orange NSW

Hinged Joint 8/90/15 200m Roll

$390.00$440.00Save $50.00 inc GST
Factory pickup from Orange · confirm collection timing
Single roll$390.00inc GSTAdd the quantity you need below
Full pallet$3,510.00 totalinc GST9 rolls · approx. $390.00 per rollPallet — Hinged Joint 8/90/15 200m (9 Rolls) Whole job Price my whole job Pickup standard · delivery quoted by Daryl

At checkout, choose Pickup (76 Astill Drive, Orange NSW). Checkout shows Ship first, so please change it.

  • Visa
  • Mastercard
  • American Express
  • Apple Pay
  • Google Pay
  • Shop Pay
  • PayPal
Fencing collection & delivery
  • Factory pickup from 76 Astill Drive, Orange is standard
  • Need delivery? Daryl provides the freight quote before payment
  • Fencing orders of $10,000+ inc GST may qualify for free delivery within 500km by road of Orange NSW
  • The Outback team confirms road distance, load, access, unloading and schedule
Ask our Orange team about delivery

Outback Fencing & Steel Supplies · SKU 4603453436

Complete the fence

Choose the picket height and finish for your job. These are individual pickets, not packs. The quantity is a planning starting point, not confirmation that a picket suits your fence, ground or loads.

Plan the whole fence · Browse singles and packs · Ask for a whole-job quote

  • 2.50mm wire throughout — heavier than standard hardware mesh
  • 260g/m² heavy galvanised coating
  • Made on our machine in Orange, NSW
Technical specsOFS · Orange NSW
Wire2.50mm throughout — horizontals HT, verticals MT
Coating260g/m² heavy galvanised
ManufactureThe Beast — Orange, NSW (Australian Made)

Not sure how much you need? Run your fence through the calculator →

Product specificationOFS · Orange NSW
Outback Fencing & Steel Supplies

Hinged Joint 8/90/15
200m Roll

Made in-house in Orange, NSW, with 2.5mm galvanised wire throughout.

8Horizontal wires
90cmMesh height
15cmPocket spacing
200mRoll length

Made for your fencing project

The Outback 8/90/15 roll has 8 horizontal line wires, a 90cm mesh height and 15cm spacing between vertical wires. Each roll supplies 200 metres of mesh before allowances for joins and your fence layout.

The 90cm height and 15cm spacing between vertical wires make this size an option for rural boundaries and paddock fencing. Choose the fence layout and posts to suit your stock and site.

2.5mm wire

High-tensile horizontal line wires and medium-tensile vertical wires, all 2.5mm.

Hinged joints

The wrapped hinge connections allow the mesh to flex as part of a correctly installed fence.

Galvanised steel

Galvanised wire for outdoor rural fencing. 15cm pocket spacing provides a closer pattern of vertical wires.

Specifications

Wire configuration 8/90/15
Roll length 200m
Mesh height 90cm (0.9m)
Horizontal line wires 8
Pocket / vertical wire spacing 15cm
Wire diameter 2.5mm throughout
Horizontal wires High tensile
Vertical wires Medium tensile
Material Galvanised steel
Joint type Hinged joint
Approximate roll weight 126kg
Manufacturing Made in-house in Orange, NSW

Get a roll quantity and freight quote

Tell us your fence length, roll quantity and delivery postcode. Our team can confirm current pricing, order quantities, production timing and freight.
