MESH MADE IN ORANGE NSW
Pallet — Hinged Joint 8/90/15 200m (9 Rolls)
Choose the picket height and finish for your job. These are individual pickets, not packs. The quantity is a planning starting point, not confirmation that a picket suits your fence, ground or loads.
Plan the whole fence · Browse singles and packs · Ask for a whole-job quote
- 2.50mm wire throughout — heavier than standard hardware mesh
- 260g/m² heavy galvanised coating
- Made on our machine in Orange, NSW
| Wire | 2.50mm throughout — horizontals HT, verticals MT |
| Coating | 260g/m² heavy galvanised |
| Manufacture | The Beast — Orange, NSW (Australian Made) |
Not sure how much you need? Run your fence through the calculator →

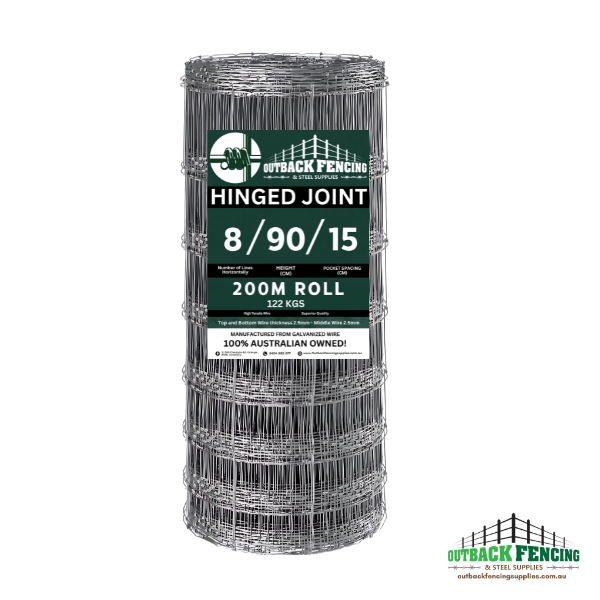

Pallet — Hinged Joint 8/90/15 200m (9 Rolls)
Order 9 rolls of Outback Hinged Joint 8/90/15 as one pallet product. Each roll is 200m long, giving 1800m of mesh in total before allowances for joins.
Made in-house in Orange, NSW, from 2.5mm galvanised steel wire. High-tensile horizontal wires and medium-tensile vertical wires throughout.
Pallet specifications
| Wire configuration | 8/90/15 |
|---|---|
| Rolls per pallet | 9 |
| Length per roll | 200m |
| Total mesh length | 1800m |
| Height | 90cm |
| Horizontal wires | 8 |
| Pocket spacing | 15cm |
| Wire diameter | 2.5mm throughout |
| Approximate mesh weight per pallet | 1138kg |
| Joint type | Hinged joint |
| Material | Galvanised steel |
Approximate mesh weight is rounded to the nearest whole kilogram using the newer weight table. Pallet and packing materials are additional.
Pallet quantity and freight
Tell us the number of pallets and delivery postcode so we can confirm availability, production timing, pallet pricing and freight. One quantity of this product means 9 rolls.
Request a pallet quote or call 0434 093 077.
